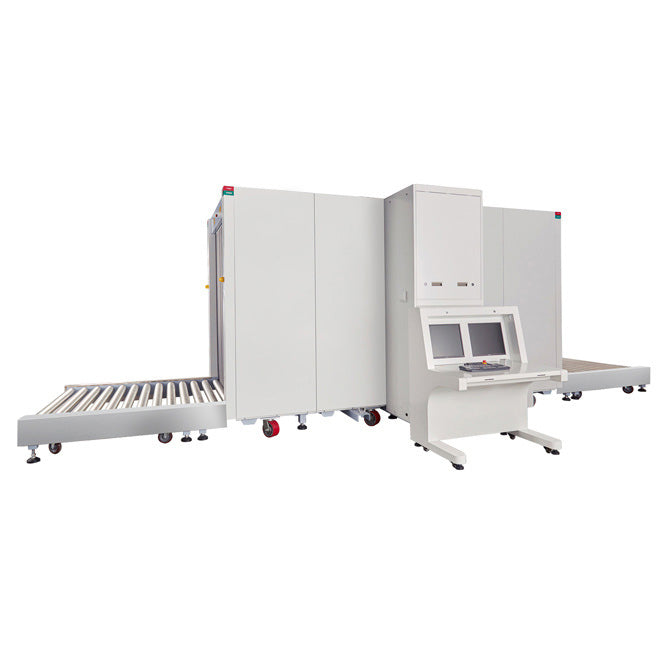

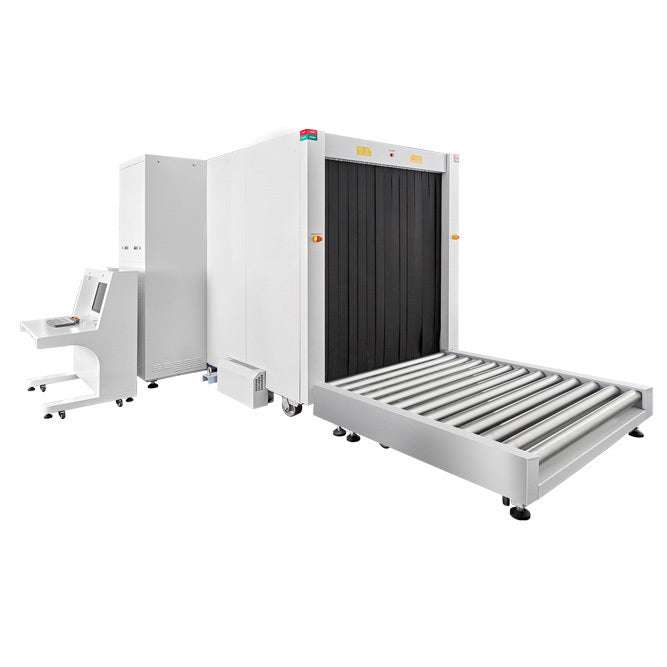

AH-150180 multi-energy x ray security inspection system(conveyor x ray scanner) for cargo scanning

Application: Heavy seaport, Logistics Express check Features: Large tunnel size, stable performance

AH-150180 multi-energy x ray security inspection system for cargo scanning

AT-150180 is powerful to deal with big size luggage at 150cm width, and 180cm height. It provides high resolution and ultra-clearimages for easy object identification withthe latest technology of computer control andimage processing.

It can distinguish organicand inorganic materials by atomic composition of thematerial, explosives/drugs and realize Threat Image ProjectFunction through adding different option. The operatorcan easily identify materials with the following coloringscheme:

◆ Organic material--orange

◆ Inorganic material--blue

◆ Mixed material--green

◆ High density material--red

General information:

Tunnel Size: 1500mm*1800mm

Conveyor Speed: 0.22m/s

Conveyor height:350mm

Conveyor Max Load: 2000kg

X ray Dose per inspection <1.8μSv

Wire Resolution: 36AWG Guarantee, 38AWG typical

Spatial resolution Level: dia1.3mm, Vertical: dia1.6mm

Penetration: 32mm steel guarantee, 34mm steel typical

Penetration Resolution: 30AWGguarantee, 32AWG typical

Film Safety: GuaranteeASA/ISO1600 Film

X-ray Leakage: <0.1μSv/h (at a distance of 5cm From external housing)

Conveyor running direction: bi-direction

Throughput: Typically 720 bags per hour
